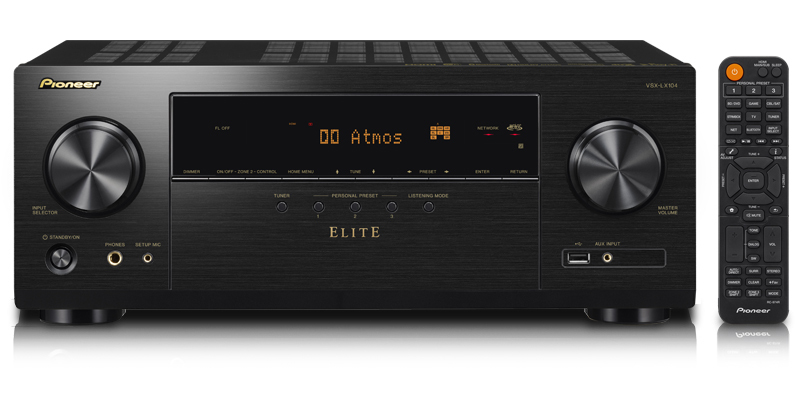

Lx104 main

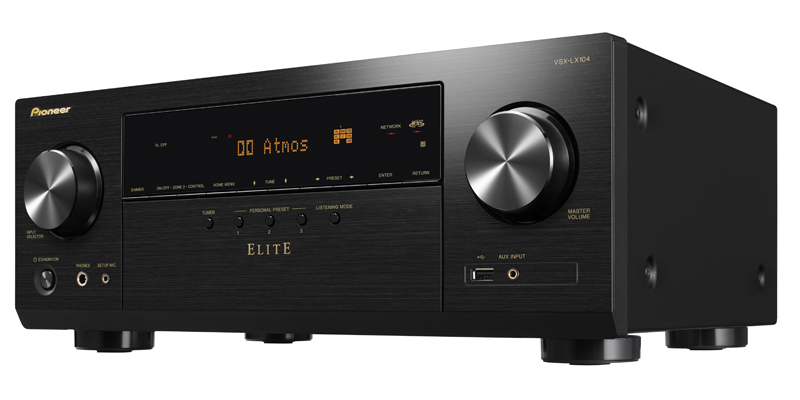

Lx104 angle

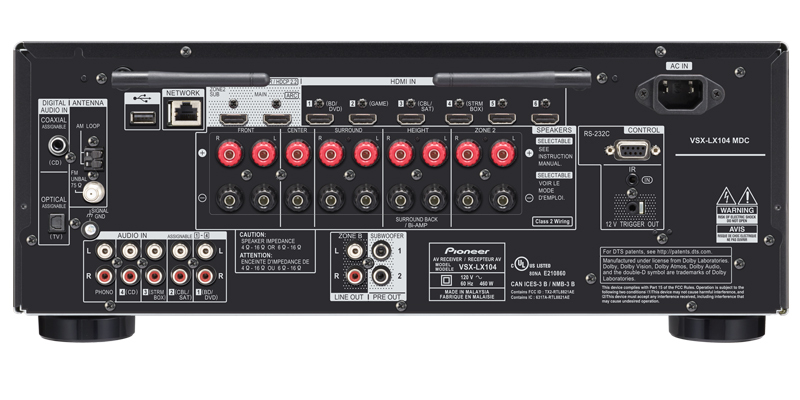

Lx104 back

VSX-LX104 (Refurbished)

Indulge yourself in 5.2.2ch surround sound created by Dolby Atmos® or DTS:X, and even without height or surround speakers, you can still experience similar effects by Dolby Atmos Height Virtualizer* and DTS Virtual:X*1. Enjoy superior images with Ultra HD, HDR10, HLG, and Dolby Vision™ pass through and support for HDCP 2.2. You can also stream songs from various sources via Wi-Fi, Bluetooth®, DTS Play-Fi, SONOS system, and Apple AirPlay 2*. Other highlights include Powered Zone 2 feature with a dedicated DAC, Personal Preset buttons, and 2 HDMI outputs.

Specs

Power

Amplifier Design Direct Energy
8 ohms, 1 kHz, THD 0.08 %, 2ch Driven FTC 80W+80W
4 OHM Speaker Yes
Channels 7.2
Power Output: Watts per Channel (1kHz,10%THD@6ohm 1ch Driven) 170 W/ch
Estimated Power Consumption/Network Standby off 460 W/0.1 W

Handheld and Internet

AirPlay Apple AirPlay 2
Internet Radio TuneIn Radio
FlareConnect™ for Multi-room Audio Yes
Amazon Music, Pandora ® , Spotify, TIDAL, and Deezer Hi-Fi Music- Yes
Streaming Audio From PC/Network Yes
iOS/Android Remote Control APP Pioneer Control App
DTS Play-Fi with Pioneer Music Control App Yes

Decoders & Formats

Digital Core DSP Engine Digital Quad-Core 32-bit DSP (Cirrus Logic)
Audio Processing 7.1
IMAX Enhanced Yes
Dolby Atmos Height Virtualizer Yes
Dolby Digital Plus Yes
DTS-HD Master Audio Yes
DTS Virtual:X Yes
Audio DACs 384 kHz/32-bit D/A Conversion with AK4458 (AKM)
Music File Playback 192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB
Dolby Atmos Yes
Dolby TrueHD Yes
DTS:X Yes
DTS Neural:X Yes
HDMI SACD Transfer

Soundfield Calibration

MCACC Yes
Phase Control Yes
EQ Type LR　SYMMETRY　EQ
Auto Subwoofer Crossover Yes
MCACC Memory 1
EQ Bands 9-Band
Distance Adjustment 0.1 feet

Listening Modes

Auto Surround Yes
Advanced Surround 10+1
Stream Direct Yes (Direct, Pure Direct)
Front Stage Surround Advance Yes

Audio features

Dialog Enhancement Yes
DSD Music File Yes
Sound Delay (Lip Sync) Yes
Advanced Sound Retriever Yes (2ch)
Tone Control Multi
Bi-Amp Yes

Video Processing

4K Ultra HD Pass-Through Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
3-D Ready Yes
HDMI Standby Through Yes with Input Switch / Last Memory
Dolby Vision Compatible Yes
HDMI x.v. Color Yes
4K Ultra HD Video Scaler Yes (1080p to 4K)
Audio Return Channel Yes
HDR HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
HDMI 36-bit Deep Color Yes

Connectivity

HDMI Input / Output 6In (Rear) / 2 Out
Bluetooth Built-In Bluetooth® Wireless Technology (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
Ethernet Input Yes
Digital Audio Inputs / Output 2 In (Optical 1, Coaxial 1)
Headphone Output Yes
Phono Input Yes
Wi-Fi Built-In Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in
USB Terminal Front and Rear
Analog Audio Inputs / Output 6 in / 0 out
Pre-Amp Output 0.2 Ch
Front A/V Inputs USB / 3.5mm stereo mini jack
AM/FM Presets AM/FM Tuner 40 Presets

Installation

On-Screen Display User-Friendly GUI with System
Powered Zone output Zone2
Zone 2 Sources All Audio Sources
RS-232C Yes
Multi-Zone On-Screen Display Yes
Function Rename Yes
Personal Preset Yes
Versatile Speaker Configuration Speaker 9ch Out (FRONT, CENTER,SURROUND, SURROUND BACK/HEIGHT/Bi-AMP, ZONE 2)
Auto Power Down Yes
Multi-Room and Source Output ZONE B Line Out
12 Volt Trigger (Assignable) A
IR Serial Remote In/Out 1 In
FL Dimmer Yes
Remote Yes
Sleep Timer Yes

Construction

Speaker Terminals 9 Large

Warranty

Warranty 3 Years

Dimensions

W x H x D (inches) 17-1/8 x 6-13/16 x 14-9/16 inches (435 x 173 x 370.5 mm)
Weight 26.5 lbs. (12.0 kg)

Docs

Product Manuals

Download the Product Manuals for VSX-LX104 (Refurbished) here: SN29403637 VSX LX104 En 190226 web , SN29403602 VSX LX104 Es 190226 web , SN29403602 VSX LX104 Fr 190226 web .
